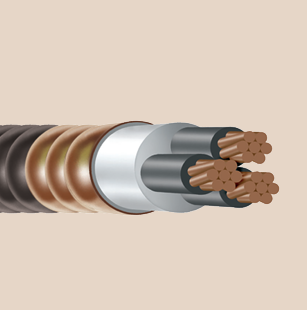

VITALink® RC90 Transit 2-Hour Fire Rated Power Cable

Disclaimer: Images are for reference only. Please check technical specifications for exact conductor counts and layout.

Transit Section VITALINK®-RC90-TRANSIT-2-HOUR-FIRE-RATED-POWER-CABLE

Application :

Fire & Life Safety

Description:

VITALink® RC90 is a 600V 2-hour fire rated cable listed to ULC S139 with hose stream. It is specifically designed to meet both the electrical and fireresistive cable requirements of NFPA 130 and NFPA 502 for emergency communications, emergency lighting & emergency ventilation. When installed per Systems FHIT7 120, 120A, and 60, plus the CEC, VITALink® RC90 meets code requirements for 2-hour Fire Rated Circuits, Electrical Circuit Integrity Systems, Survivability and Circuit Integrity. VITALink® RC90 Cables offer lowered cost, reliability and ease of installation advantages over MI cable and other methods of providing fire rated circuits. The equipment grounding copper armor is terminated with commercially available brass MC/RC connectors and the cable connections are made without the need for splicing or use of special tools. Compared to Mineral Insulated (MI) cable, VITALink® RC90 is not exposed to costly field expenses in preparing cable ends, special panel penetrations, additional flexible terminations, and the splicing of shorter lengths in longer runs. VITALink® RC90 is not susceptible to failures caused by moisture ingress through leaky seals or faulty storage. (VT03)

  • Voltage:

    600

  • Temperature:

    90°C

  • Feature 1:

    Up to 2-hour fire resistance

  • Feature 2:

    Splice available

  • Feature 3:

    Superior resistance to flame propagation

  • Feature 4:

    Only conventional tools required to terminate

  • Feature 5:

    Commercially available brass/stainless steel connectors

  • Feature 6:

    Printed number coding allows for easy identification (ICEA Method 4)

  • Feature 7:

    Labor savings on termination, installation, and handling

  • Feature 8:

    Superior impact & crush resistance (hazardous locations)

  • Feature 9:

    Low smoke, low toxicity, halogen free design

  • Feature 10:

    Sunlight resistant

  • Feature 11:

    90°C for wet locations

  • Feature 12:

    Flexible

  • Feature 13:

    Long continuous lengths available

  • Feature 14:

    Multiple sizes and conductor counts available

  • Feature 15:

    VFD cable design available

  • Feature 16:

    Copper sheath can be used for equipment bonding exceeding CEC Rule 10-618 and 10-804

  • Feature 17:

    Welded armor forms an impervious barrier

  • CSA_Listings:

    CSA 22.2 No 123

  • cUL Listing:

    Type RC90

  • CSA Listings:

    CSA 22.2 No 123

  • UL Listings:

    UL 2196/ULC S139 -- Listed as up to 2-hour fire rated with Hose Stream

Performance Standards

  • Systems FHIT7 120, 120A, and 60 of the ULC Fire Resistance Directory • IEEE 1202/FT4 vertical flame test; ST1 limited smoke • Copper conductors to ASTM B8

Core Specifications

  • Voltage:

    600
  • Temperature:

    90°C
