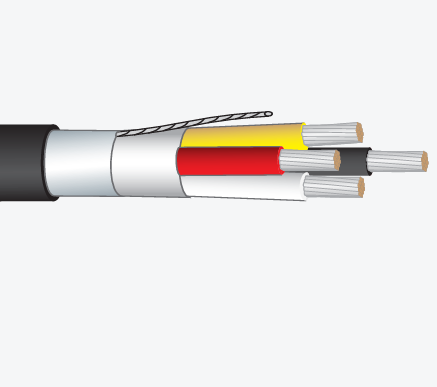

Axle Counter Cable Single & Multi-Quad Transit Cable

Disclaimer: Images are for reference only. Please check technical specifications for exact conductor counts and layout.

Transit Section AXLE-COUNTER-CABLE-SINGLE-MULTI-QUAD-TRANSIT-CABLE

Application :

Harsh Environment Power Control Instrumentation

Description:

Axle Counter Cables are designed to support Positive Train Control (PTC) & Communication Based Train Control (CBTC), contributing to the safety of personnel and assets. These devices rely on wired communication to centralized stations that relay information of transit activity. The Axle Counter Device monitors and counts the number of train axles passing by them. The HUB-Link Axle Counter Cable allows installation, with or without direct burial, that provides reliable communication potentially reducing installation cost. (HT06)

  • Construction - Circuit Identification:

    Pair #1: Black & Red; Pair 40: Yellow & White

  • Construction Conductor:

    20 AWG Stranded Tinned Copper

  • Construction Insulation:

    Cross-linked Low Smoke Zero Halogen Free Insulation, 0.41mm, 0.25mm²

  • Construction - Shield/Drainwire:

    Aluminum/Polyester tape, Helically Applied / 19 Stranded Tin Coated

  • Voltage:

    300

  • Temperature:

    90°C

  • Construction Jacket:

    Black Low Smoke Zero Halogen Insulation LSZH

  • Feature 1:

    -40°C to 90°C

  • Feature 2:

    LSZH Insulation and jacket

  • Feature 3:

    Flame retardant

  • Feature 4:

    Moisture and sunlight resistant

  • Feature 5:

    Direct Burial

  • Feature 6:

    ER Rated

  • UL Listings:

    UL 1666 FT4/IEEE Flame test - UL Listed PLTC-ER Power Limited Tray Cable NOM, UL 13 - NFPA 130 Flame test UL 1666 FT4/IEEE, 1000 per NFPA 130, 2023 Chapter 12, marked with -LS / (Low Smoke)

Performance Standards

  • NFPA 130,2023 compliant with 90°C Wet Ratings

Core Specifications

  • Voltage:

    300
  • Temperature:

    90°C
