SPC90_2C12-2C16

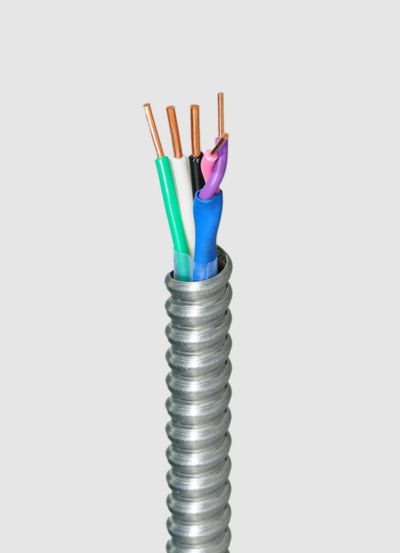

Disclaimer: Images are for reference only. Please check technical specifications for exact conductor counts and layout.

Signal Power Control cable SPC90_2C12-2C16

SPC90 Power, Signal and Control - 2/C 12 AWG SBC with 2/C 16 AWG SBC

  • AWG Size:

    12

  • Nominal Diameter (Inch):

    0,615

  • Nominal Diameter (mm):

    16

  • Nominal Weight (lbs/mft):

    140

  • Nominal Weight (kgs/km):

    208,342

  • Nominal Insulation (inch):

    n/a

  • Nominal Insulation (mm):

    n/a

  • Part Number:

    'SPC90_2C12-2C16

  • Stranding:

    n/a

  • Temperature:

    90 ?C

  • Voltage:

    600

  • CSA/UL Notes 1:

    CSA C22.2 No. 239 ACIC RoHS

  • CSA/UL Notes 2:

    CSA C22.2 No. 38, Thermoset-insulated wires and cables

Technical Data Sheets are available upon request.

Application

  • PORTABLE POWER CABLES : TOOLS, APPLICATIONS, MACHINERY BOTH INDOORS AND OUTDOORS

Core Specifications

  • AWG Size:

    12
  • Stranding:

    n/a
  • Voltage:

    600
  • Temperature:

    90 ?C
