FESTOON124-8

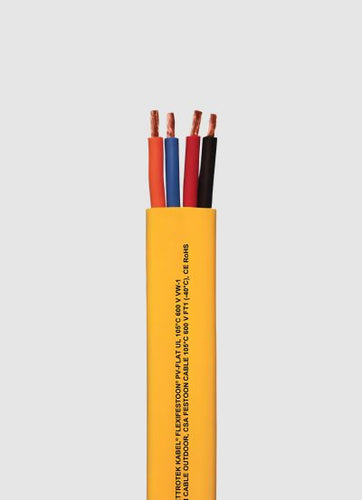

Disclaimer: Images are for reference only. Please check technical specifications for exact conductor counts and layout.

Flexifestoon FESTOON124-8

12 GA 4 CONDUCTORS FLAT FESTOON CABLE YELLOW

  • AWG Size:

    12

  • Nominal Diameter (Inch):

    0,71

  • Nominal Diameter (mm):

    18,03

  • Nominal Weight (lbs/mft):

    168

  • Nominal Weight (kgs/km):

    250,011

  • Nominal Insulation (inch):

    n/a

  • Nominal Insulation (mm):

    n/a

  • Part Number:

    'FESTOON124-8

  • Stranding:

    4 x 12

  • Temperature:

    105°C

  • Voltage:

    600

  • CSA/UL Notes 1:

    -40°C +105°C

  • CSA/UL Notes 2:

    UL festoon and AWM 105°C 600 V

  • CSA/UL Notes 3:

    CSA festoon 105°C 600 V Self-extinguishing and flame retardant acc. to:UL VW-1, CSA FT1

Technical Data Sheets are available upon request.

Application

  • FLEXIBLE POWER CABLE FOR USE IN FESTOON SYSTEMS IN INDUSTRIAL ENVIRONMENTS

Core Specifications

  • AWG Size:

    12
  • Stranding:

    4 x 12
  • Voltage:

    600
  • Temperature:

    105°C
