CERCO_RC90_VM03500

Disclaimer: Images are for reference only. Please check technical specifications for exact conductor counts and layout.

VITALink RC90 CERCO_RC90_VM03500

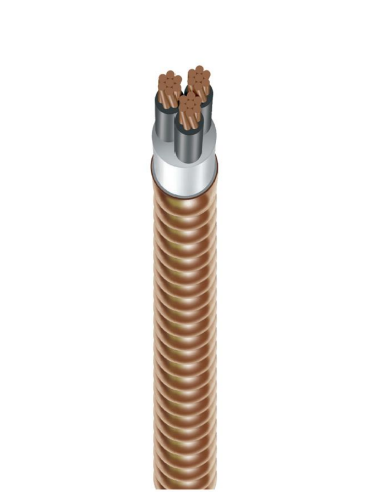

VITALink® RC90 500 MCM 3 Conductor 2-Hour Fire Rated Power Cable

  • AWG Size:

    500

  • Color Code:

    Black

  • Nominal Diameter (Inch):

    2,82

  • Nominal Diameter (mm):

    71,628

  • Nominal Weight (lbs/mft):

    6720

  • Nominal Weight (kgs/km):

    9999,36

  • No. of Conductors:

    3

  • Part Number:

    CERCO_RC90_VM03500

  • Temperature:

    90°C

  • Voltage:

    600

  • Manufacturer:

    MARMON

  • Manufacturer No:

    VM03500-100

  • Armor:

    ARMORED

  • Inner Jacker (inch):

    2,31

  • Inner Jacket (mm):

    58,674

  • CSA/UL Notes 1:

    CSA 22.1 Article 12-700

  • CSA/UL Notes 2:

    cUL Type RC90 per CSA 22.2 No 123

  • CSA/UL Notes 3:

    ULC-S139/2196 Listed as up to 2 hour fire rated

  • CSA/UL Notes 4:

    ULC S139 MAX VOLTAGE 72V PN 36742 (MMYY) (01-12345) / FRR-2HR FHIT.40B/FHIT7.40B UL2196

Installation Manual (EN)

Application

  • VITALink® Cable is designed to support Life and Fire Safety. This cable offers survivability for 2-Hours in harsh environments while being fully operational to allow for safe evacuation of building occupants

Core Specifications

  • AWG Size:

    500
  • No. of Conductors:

    3
  • Voltage:

    600
  • Temperature:

    90°C
  • Color Code:

    Black
