CERCO_FAS_CIC_FA1603

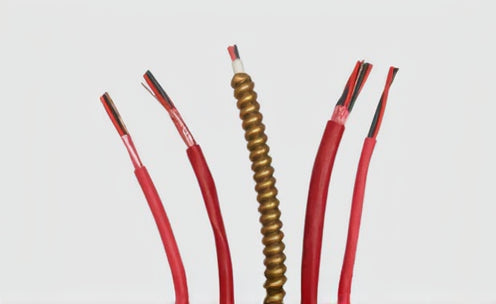

Disclaimer: Images are for reference only. Please check technical specifications for exact conductor counts and layout.

VITALink FAS CERCO_FAS_CIC_FA1603

16 AWG Solid 3 Conductor VITALink® Circuit Integrity Cable RED

  • Shield:

    UNSHIELDED

  • AWG Size:

    16

  • Color Code:

    Black, Printed

  • Nominal Diameter (Inch):

    0,348

  • Nominal Diameter (mm):

    8,84

  • Nominal Weight (lbs/mft):

    65

  • Nominal Weight (kgs/km):

    96,72

  • Nominal Insulation (inch):

    0,128

  • Nominal Insulation (mm):

    3,25

  • No. of Conductors:

    3

  • Part Number:

    CERCO_FAS_CIC_FA1603

  • Temperature:

    105° C

  • Voltage:

    300

  • Manufacturer:

    MARMON

  • Manufacturer No:

    36676

  • Armor:

    UNARMORED

  • CSA/UL Notes 1:

    CAN/ULC-S139 2-Hour Fire Rating

  • CSA/UL Notes 2:

    UL Subject 1424 Power Limited Fire Alarm Circuits;300V/105°C

  • CSA/UL Notes 3:

    UL Subject 13 Power Limited Circuit Cables; 300V/105°C

  • CSA/UL Notes 4:

    ULC S139 MAX VOLTAGE 72V PN 36742 (MMYY) (01-12345) / FRR-2HR FHIT.40B/FHIT7.40B UL2196

Installation Manual (EN)

Application

  • VITALink® Cable is designed to support Life and Fire Safety. This cable offers survivability for 2-Hours in harsh environments while being fully operational to allow for safe evacuation of building occupants

Core Specifications

  • AWG Size:

    16
  • No. of Conductors:

    3
  • Shield:

    UNSHIELDED
  • Voltage:

    300
  • Temperature:

    105° C
  • Color Code:

    Black, Printed
