CERCO_ETH-ST1_VI_1802PS-3

Disclaimer: Images are for reference only. Please check technical specifications for exact conductor counts and layout.

VITALink Ethernet CERCO_ETH-ST1_VI_1802PS-3

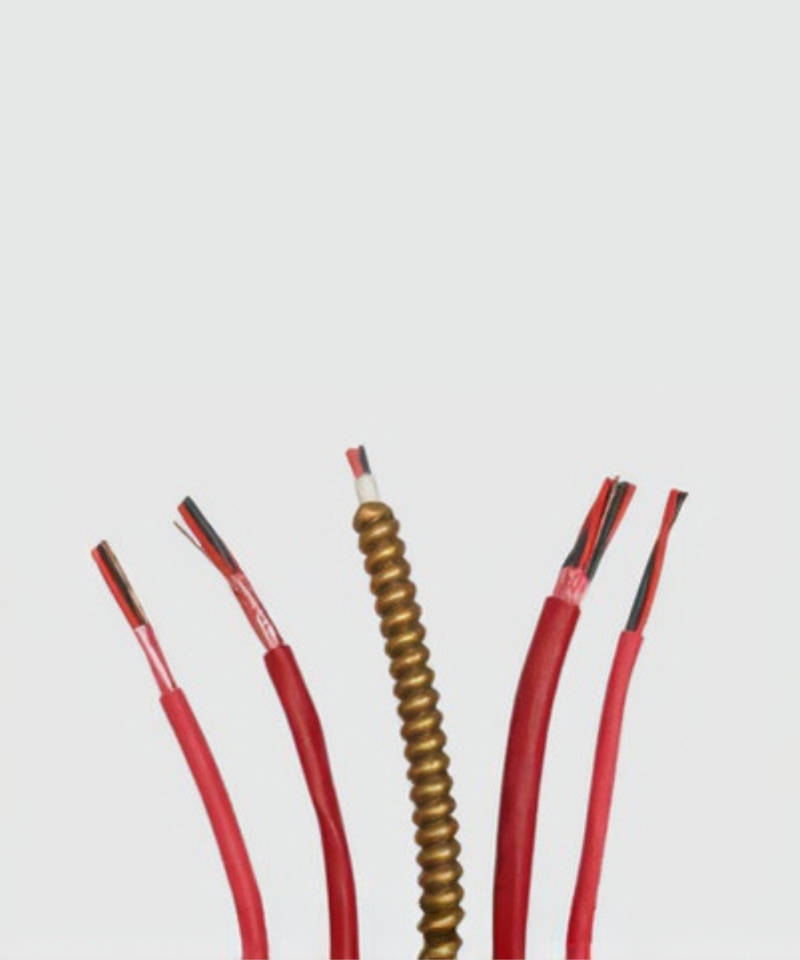

18AWG 2-Pair UTP VITALink® Ethernet Cable RED

  • Shield:

    SHIELDED

  • AWG Size:

    18

  • Color Code:

    White & Black Printed

  • Nominal Diameter (Inch):

    0,357

  • Nominal Diameter (mm):

    9,07

  • Nominal Weight (lbs/mft):

    56

  • Nominal Weight (kgs/km):

    83,33

  • Nominal Insulation (inch):

    0,09

  • Nominal Insulation (mm):

    2,29

  • No. of Pairs:

    2

  • Part Number:

    CERCO_ETH-ST1_VI_1802PS-3

  • Temperature:

    105° C

  • Voltage:

    300

  • Manufacturer:

    MARMON

  • Manufacturer No:

    36512-NS

  • Armor:

    UNARMORED

  • CSA/UL Notes 1:

    UL Subject 444 Communications Cable, 300V/105°C Classified

  • CSA/UL Notes 2:

    ANSI/UL 2196 2-Hour Fire Rating for use in FHIT System 40A

  • CSA/UL Notes 4:

    ULC S139 MAX VOLTAGE 72V PN 36742 (MMYY) (01-12345) / FRR-2HR FHIT.40B/FHIT7.40B UL2196

Application

  • VITALink® Cable is designed to support Life and Fire Safety. This cable offers survivability for 2-Hours in harsh environments while being fully operational to allow for safe evacuation of building occupants

Core Specifications

  • AWG Size:

    18
  • Shield:

    SHIELDED
  • No. of Pairs:

    2
  • Voltage:

    300
  • Temperature:

    105° C
  • Color Code:

    White & Black Printed

Related Products

CERCO_ETH-ST1-ARM_1804P-3

CERCO_ETH-ST1-ARM_1804P-3

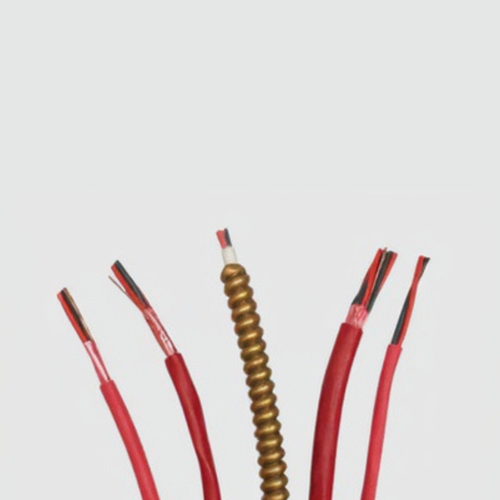

HUB-Link® 18AWG 4-Pair Armored Ethernet Cable
