BARE4/019

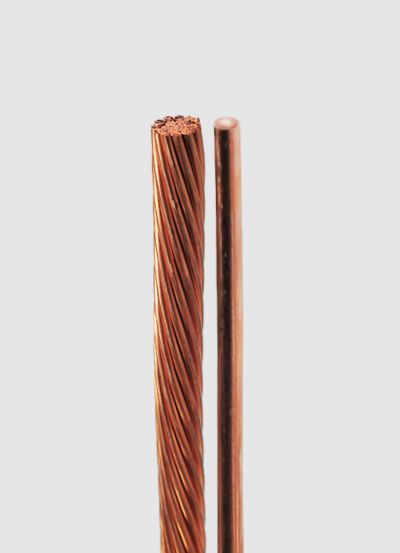

Disclaimer: Images are for reference only. Please check technical specifications for exact conductor counts and layout.

Bare Wire BARE4-019

4/0 GA 19 STRANDS BARE COPPER

  • AWG Size:

    4/0

  • Nominal Diameter (Inch):

    0,485

  • Nominal Diameter (mm):

    12,319

  • Nominal Weight (lbs/mft):

    636

  • Nominal Weight (kgs/km):

    946,470

  • Nominal Insulation (inch):

    n/a

  • Nominal Insulation (mm):

    n/a

  • Part Number:

    'BARE4/019

  • Stranding:

    n/a

  • Temperature:

    n/a

  • Voltage:

    n/a

  • CSA/UL Notes 1:

    Solid Soft or Annealed Bare Copper, ASTM B3

  • CSA/UL Notes 2:

    Concentric Stranded Soft or Annealed Bare Copper, ASTM B8

Technical Data Sheets are available upon request.

Application

  • WIDELY USED GROUNDING, POWER DISTRIBUTION, AND OVERHEAD UTILITY LINES

Core Specifications

  • AWG Size:

    4/0
  • Stranding:

    n/a
  • Voltage:

    n/a
  • Temperature:

    n/a
