BAF64

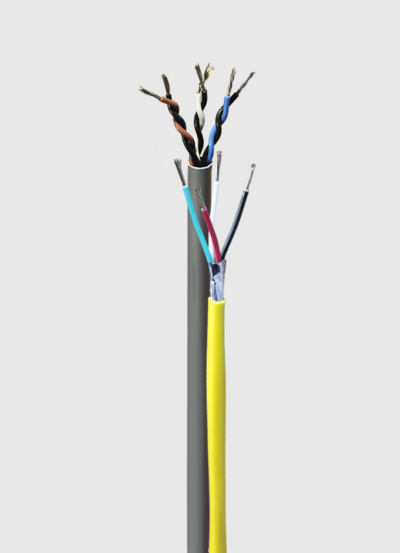

Disclaimer: Images are for reference only. Please check technical specifications for exact conductor counts and layout.

Multi Pair BAF64

22 GA 1 PAIR STRANDED FT6

Stranded tinned copper conductors

Smokeguard insulation

Chrome grey polyvinylchloride (PVC) jacket

Fire Rating:
FT6
Shield:
Unshielded
AWG Size:
22 AWG
Color Code:
3
Nominal Diameter (Inch):
0,123
Nominal Diameter (mm):
3,12
Nominal Weight (lbs/mft):
8,534
Nominal Weight (kgs/km):
12,7
No. of Pairs:
1
Part Number:
BAF64
Standard Put-Up:
300 - 305 M
Stranding:
7 X 30
Temperature:
75° C
Voltage:
300
Inner Jacker (inch):
0,009
Inner Jacket (mm):
0,23
Jacket Color:
GREY

CSA/UL Notes 1:
CSA 60°C 300 Volts - FT6

Download Specifications PDF

Application

For use in Class 2 circuits, communication, appliance wiring data processing and similar system connections installed under raised floors

Core Specifications

AWG Size:
22 AWG
Shield:
Unshielded
Stranding:
7 X 30
No. of Pairs:
1
Voltage:
300
Temperature:
75° C
Std. Put-Up:
300 - 305 M
Color Code:
3
Fire Rating:
FT6
