B7580

Disclaimer: Images are for reference only. Please check technical specifications for exact conductor counts and layout.

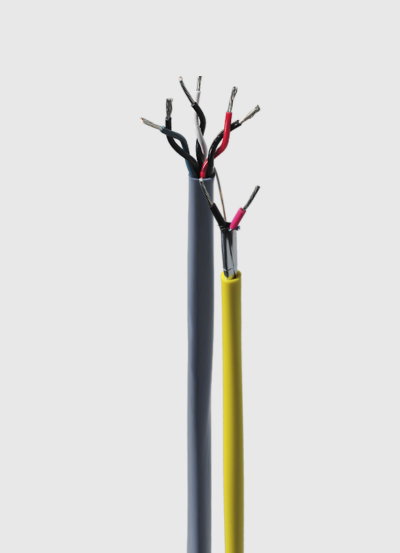

Multi Pair B7580

16 GA 1 PAIR STRANDED UNSHIELDED FT6

Stranded tinned copper conductors

SR-PVC insulation

Chrome grey polyvinylchloride (PVC) jacket

Fire Rating:
FT6
Shield:
Unshielded
AWG Size:
16 AWG
Color Code:
3
Nominal Diameter (Inch):
0,191
Nominal Diameter (mm):
4,85
Nominal Weight (lbs/mft):
23,586
Nominal Weight (kgs/km):
35,1
No. of Pairs:
1
Part Number:
B7580
Standard Put-Up:
300 - 305 M
Stranding:
7 X 30
Temperature:
75° C
Voltage:
300
Inner Jacker (inch):
0,008
Inner Jacket (mm):
0,203
Jacket Color:
GREY

CSA/UL Notes 1:
CSA 60°C 300 Volts - FT6

Technical Data Sheets are available upon request.

Application

For use in Class 2 circuits, communication, appliance wiring data processing and similar system connections installed under raised floors

Core Specifications

AWG Size:
16 AWG
Shield:
Unshielded
Stranding:
7 X 30
No. of Pairs:
1
Voltage:
300
Temperature:
75° C
Std. Put-Up:
300 - 305 M
Color Code:
3
Fire Rating:
FT6

Related Products

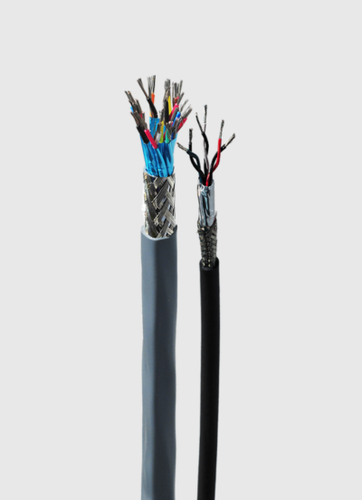

32-F01-4

22 GA 1 PAIR STRANDED SHIELDED FT6 LOW CAP.

6266

18 GA 1 PAIR STRANDED FT4 600V 105C

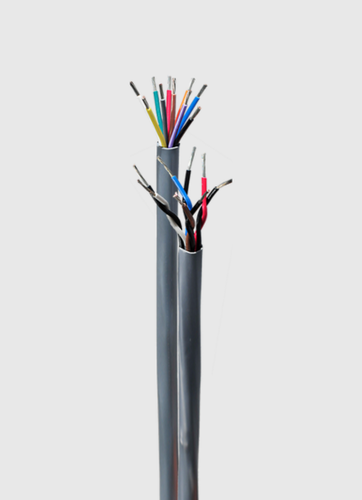

6401

22 GA 2 PAIRS STRANDED FT4 600V 105°C

6402

22 GA 3 PAIRS STRANDED FT4 600V 105°C

6403

22 GA 4 PAIRS STRANDED FT4 600V 105°C

6405

22 GA 6 PAIRS STRANDED FT4 600V 105°C

6412

22 GA 27 PAIRS STRANDED FT4 600V 105°C

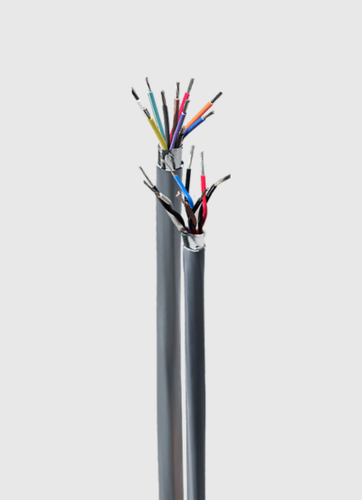

7234
