7299

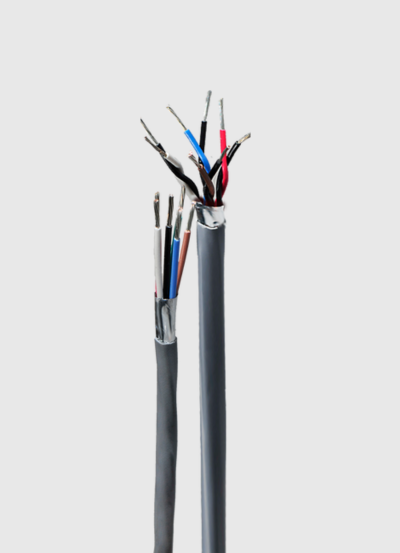

Disclaimer: Images are for reference only. Please check technical specifications for exact conductor counts and layout.

Multi Pair 7299

18 GA 1 PAIR STRANDED SHIELDED FT4

Stranded tinned copper conductors

SR-PVC insulation

Chrome grey polyvinylchloride (PVC) jacket

  • Fire Rating:

    FT4

  • Shield:

    Shielded

  • AWG Size:

    18 AWG

  • Color Code:

    3

  • Nominal Diameter (Inch):

    0,19

  • Nominal Diameter (mm):

    4,826

  • Nominal Weight (lbs/mft):

    24,191

  • Nominal Weight (kgs/km):

    36

  • No. of Pairs:

    1

  • Part Number:

    7299

  • Standard Put-Up:

    300 - 305 M

  • Stranding:

    7 X 30

  • Temperature:

    105° C

  • Voltage:

    600

  • Inner Jacker (inch):

    0,3

  • Inner Jacket (mm):

    0

  • Jacket Color:

    GREY

  • CSA/UL Notes 1:

    CSA -20°C +105°C 600V

  • CSA/UL Notes 2:

    UL +80°C 300V

Download Specifications PDF

Application

  • For use in Class 2 circuits, communication, appliance wiring data processing and similar system connections installed under raised floors

Core Specifications

  • AWG Size:

    18 AWG
  • Shield:

    Shielded
  • Stranding:

    7 X 30
  • No. of Pairs:

    1
  • Voltage:

    600
  • Temperature:

    105° C
  • Std. Put-Up:

    300 - 305 M
  • Color Code:

    3
  • Fire Rating:

    FT4
