0471

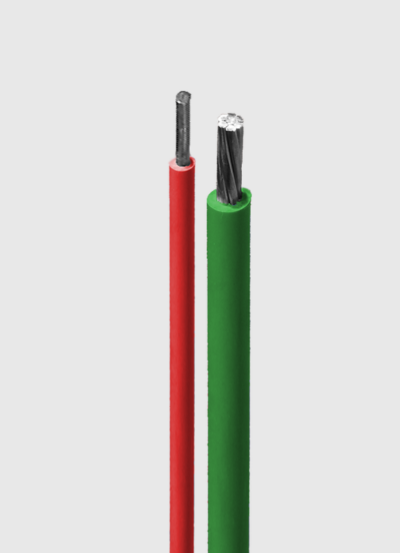

Disclaimer: Images are for reference only. Please check technical specifications for exact conductor counts and layout.

TR64 0471

TR64 24 GA 7 STRANDS TINNED COPPER

Annealed tinned copper

Polyvinylchloride (PVC) premium insulation

Hook-Up Wire

  • AWG Size:

    24

  • Nominal Diameter (Inch):

    .056 in

  • Nominal Diameter (mm):

    1.42 mm

  • Nominal Weight (lbs/mft):

    3.1 lbs/mft

  • Nominal Weight (kgs/km):

    4.6 kgs/km

  • Nominal Insulation (inch):

    .016 in

  • Nominal Insulation (mm):

    .41 mm

  • Standard Put-Up:

    300 m

  • Stranding:

    7 x 32

  • Temperature:

    90°C

  • Voltage:

    300 volt

  • Options:

    Different stranding configurations to order - Dying and striping available

  • CSA/UL Notes 1:

    CSA C22.2 N° 127

  • CSA/UL Notes 2:

    UL Style 1007 - 80°

Application

  • Internal wiring of electric and electronic equipment

Core Specifications

  • AWG Size:

    24
  • Stranding:

    7 x 32
  • Voltage:

    300 volt
  • Temperature:

    90°C
  • Std. Put-Up:

    300 m
